Description
Technical Specifications
SPECS Micro Pressure Reducing Regulator are specifically designed for tank blanketing applications. It can be applied to the micro-pressure control system of all kinds of gases, especially for micro-pressure nitrogen sealing system of middle and large storge tank. The lowest control pressure is 0.5KPa.
The micro Pressure Reducing Regulators are used together with the breathing valves or the nitrogen relief regulators to form a set of tank protection device.
The inlet pressure range for Micro Pressure Reducing Regulator working normally is 2.0~8.0 bar(G)
Applicable Standard
Design & Manufacture Standard: Manufacturer's Standard
Face to Face: DIN 3202-1999 F1
End Connection: ASME B16.5, EN1092-1, GOST33259
Test Standard: Manufacturer's Standard
Products Range
Size: 1/2"~4"
Pressure Rating: ASME CLASS 150~300
Body material: Carbon steel, Stainless steel, Alloy steel, Duplex stainless steel
End: Flanged (RF,FM), Butt Weld, Thread
Temperature Range: -5℃~150℃
Seat Leakage: ANSI IV or ANSI VI(bubble-tight)
Bonnet Type: Standard
Setting Range: 0.5~6.0kPa(G)
Benefits
1. Simple structure, convenient installation and debugging, low maintenance cost
2. Wide adjustment range, five levels of selection and adjustment can be carried out between 14~720mmH2O water column
3. Fast response speed and high adjustment accuracy
4. It can be used in the nitrogen sealing system of the storage tank to play a safety protection role

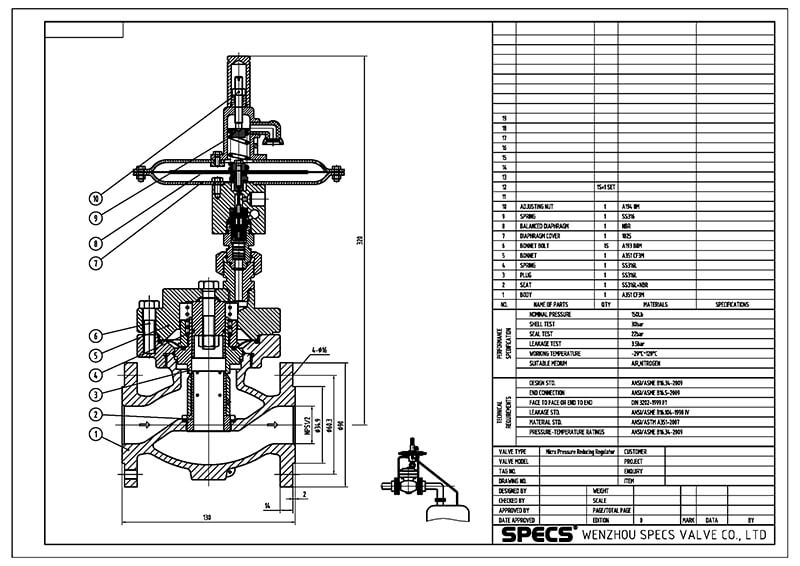

The GA Of Micro Pressure Reducing Regulator
