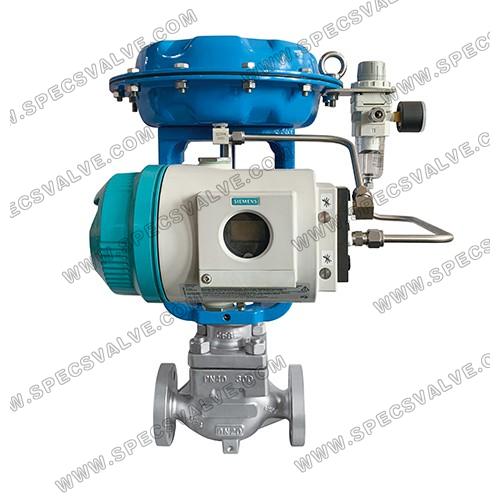

SPECS Small Flow Control Valves are compact and with high performance. They can be applied for the precise control of micro flow. For example, they are used by scientific research institutions for micro control of flow and pressure. The design pressure of valve body is up to 32Mpa, the minimum diameter of the plug can be 1mm and the minimum controllable Cv can be 0.001. This series are widely used for aerospace and hydrogen equipment.
Applicable Standard
Design & Manufacture Standard: IEC 60534-2006
Face to Face: ISA-75.03-1992
End Connection: ASME B16.5, EN1092-1, GOST33259, ASME B16.25
Test Standard: IEC60534-4
Products Range
Size: 1/2" ~ 1"
Pressure Rating: ASME CLASS 150~600
Material: Carbon steel, Stainless steel, Alloy steel, Duplex stainless steel
End: Flanged (RF, RTJ), Butt Weld, Socket Weld, Thread.
Temperature Range: -196℃~230℃
Seat Leakage: ANSI Ⅳ(0.01%) or Ⅵ(bubble-tight)
Bonnet Type: Standard, Long-Extension, Bellows, Steam Jacket
Design Features
1. High pressure-resisting value, up to 32MPa
2. High precision control for small flow, minimum CV adjustment can be 0.001
3. Plug can be needle type or V type
4. Needle plug is with high sensitivity and easier to control
5. V type plug is strong, even in the case of a big pressure difference
Benefits
1. With long service life and high precision adjustment precision
2. Small plug is strong due to Special trim design
3. With special design to prevent blocking when controlling uncleaned medium in small gap.
4. Suitable for small flow control in medium of liquid, steam etc.
5. Valve body can be threaded connection

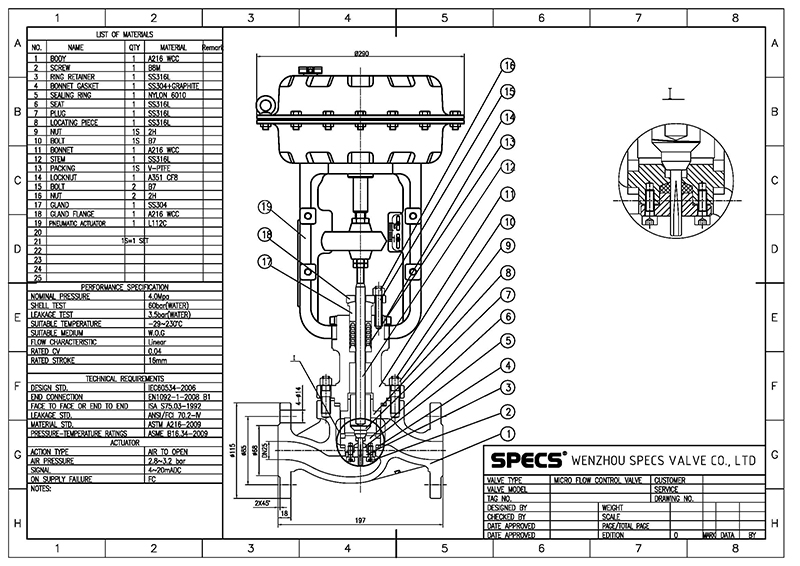

GA Of Small Flow Control Valve

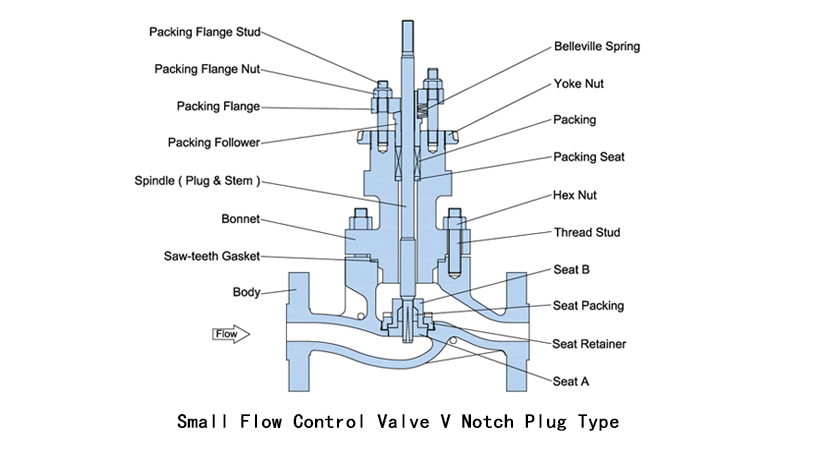

Body part selection map

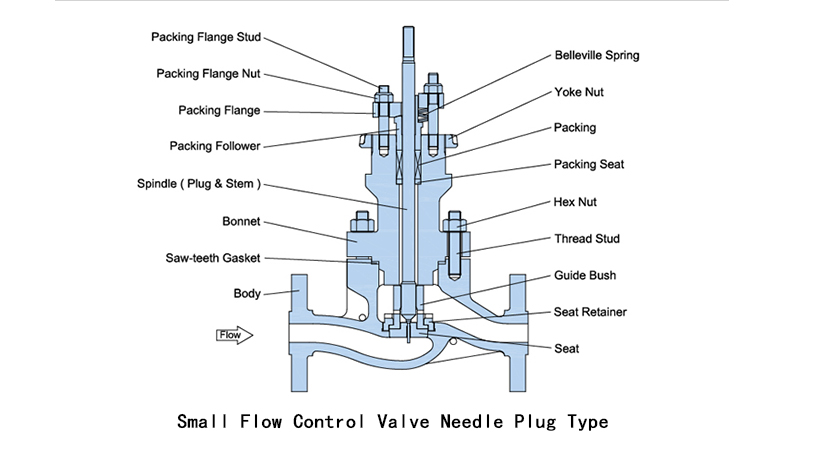

Plug Form
