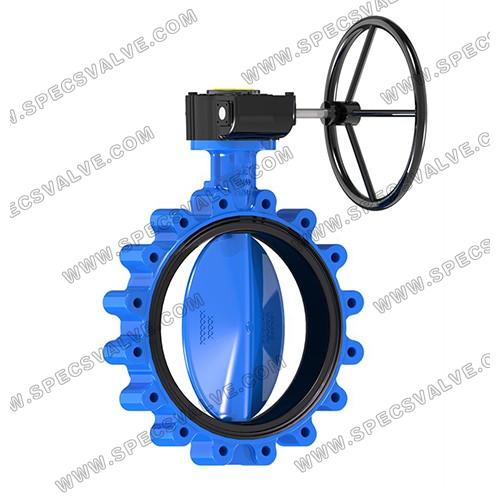

SPECS Concentric Butterfly Valves are widely apply to all kinds of industrial on-off control system. Compared to normal Globe Valve and Ball Valve, it has many advantages, like lightweight, low cost. With rapidly development of rubber material industry, soft seat butterfly not only is used to all kinds of water draining system, but also replaced to some flow control system by steps.
Concentric Butterfly Valve series are safety and low cost, it can apply to most of corrosive medium.So no medium contact with body and the material of it is steel or cast iron.lt is one of most economic valve under low and medium pressure.
Applicable Standard
Design & Manufacture Standard: API609
Face to Face: API609, BS EN 558, DIN3202,ISO 5752
End Connection: DIN, BS, UNI, ISO, ANSI, AS, JIS
Test Standard: API598
Products Range
Size: 2"~60"
Pressure Rating: ASME CLASS 150
Material: Cast Iron
Rubber Material: EDPM, NBR, VITON
End: Wafer, Lug, Flange
Operation: Operation: Manual, Gear, Pneumatic, Electric
Rubber Seat Temperature Range
NBR:
-2℃~ +100℃
EPDM: -35℃~+135℃
VITON:-20℃~+200℃
Design Features:
1. Top flange according to IS05211
2. Anti-blowout Shaft according to API609&ASME B31.3
3. Low opening& Closing Torque reduce torque by self-lubricating bearing
4. No Pin, with double-stem and no pin to resist to leak
5. Valve Seal, packing seal and three stem seals to resist to leak

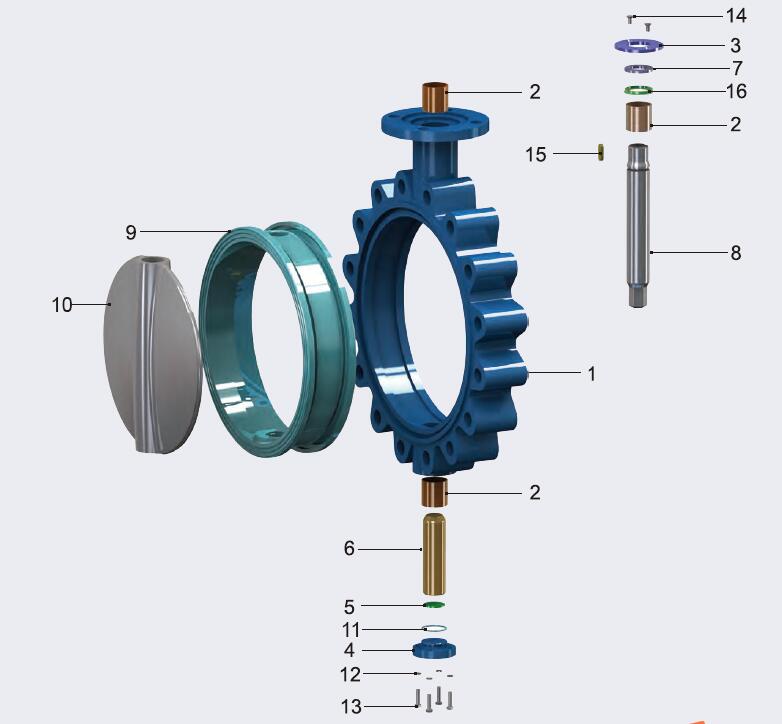

Explosion View Of Concentric Butterfly Valve

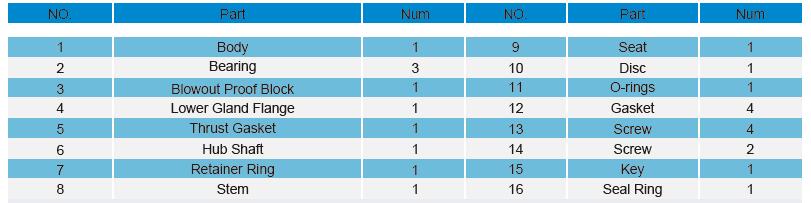

Parts Name Of Concentric Butterfly Valve
