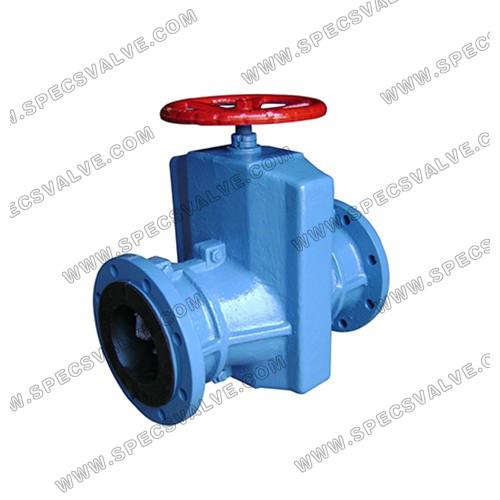

SPECS Pinch Valve is a completely enclosed, manually operated valve.
Its reliable, maintenance-free design is perfectly suited for tough slurries, abrasives and corrosive chemical applications.
The enclosed body offers protection against moving parts and offers additional safety in the event of sleeve failure. The heart of the Pinch Valve is a long-lasting, flexible rubber sleeve, available in a wide variety of elastomers suitable for any application.
SBM PTV Pinch Valves provide excellent flow control compared to other valves due to their simple yet effective design. With its excellent control characteristics, the Pinch Valve can be used as a manual throttling Control Valve.
In addition, the sleeve, which is the only part of the valve exposed to the line process, eliminates maintenance and the need for expensive, anti-corrosion body materials.
Features
1. Completely enclosed body
The enclosed body valve is the most common body type. Its enclosed design prevents premature sleeve deterioration and protects the sleeve from the environment, making it extremely safe to operate. Enclosed body pinch valves can be manufactured of cast iron, fabricated carbon steel, aluminum. Valve diameters begin from NPS 1".
2. Optimum tightness
Even large solid particles are shut off by the sleeve, which is particularly resistant to abrasion and corrosion, hence shut off without leaks.

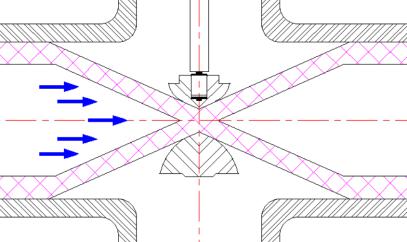

3. Full port, streamlined centerline closure
Standard full port designs, streamlined centerline closure and Class VI shutoff provide outstanding elastomer wear life as well as precise, repeatable linear flow control.
4. Self-cleaning, no plugging
Self-cleaning sleeve provide 100 % tight shut-off even if solids have built up on the sleeve wall. When compressed, any crystallized particles flake off the sleeve surface and are washed downstream.

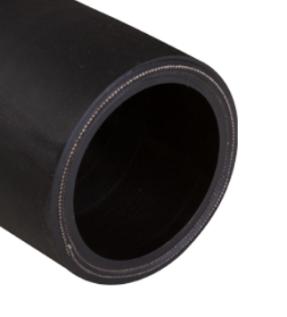

5. The sleeves inner lining reinforcing cords
The sleeve is a reinforced construction making it the pressure containing part of the valve.?The quality of the sleeve is crucialto the life time and anti-abrasion characteristics of the Pinch valve, SBM PTV Pinch Valve sleeves guarantee high wear and corrosion resistance, a trouble free operation, and extended lifetime.
6. Easy maintenance
The sleeves and other parts can be replaced easily.
7. Low pressure drop
8. Bi-directional

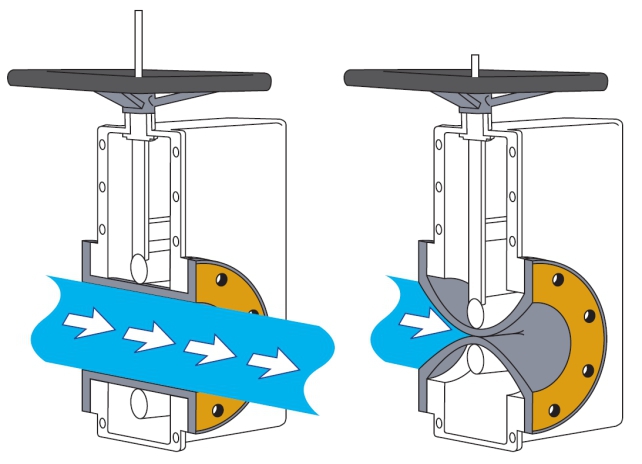

How it Works:
During operation, two pinch bars squeeze the flexible rubber sleeve, allowing the Pinch Valve to achieve a variable and stable flow rate. Fully open, the valve allows for full, straight through flow, eliminating areas where solids could build up and impair operation. Fully closed, the Pinch Valve maintains complete closure, with no leakage in either direction. Valve operation will not freeze and operating torques remain constant, even if the valve has remained in the open or closed position for years.
Applicable Standard
1. Design & Manufacture standard as to: ASME B16.34
2. Face to Face dimension standard as to: MFR-STD
3. Flange dimension conforms as to: ASME B16.5
4. Testing And Inspection as to: API 598
5. Pressure-temperature conforms as to: ASME B16.34
Products Range
Size: 1" ~ 12"
Pressure Rating: ASME CLASS 125, 150
Working temperature: -29℃ ~ +85℃
Working pressure: ≤ 150 PSI
Suitable Medium: tough slurries, abrasives, and corrosive chemical applications
Body Materials: Cast Iron, Aluminum, 14" and larger body sizes are of fabricated steel design.
Sleeves Material: NR, NBR, EPDM
General applications
• Mining
• Power
• Pulp and paper
• Alumina
• Chemical
• Cement
