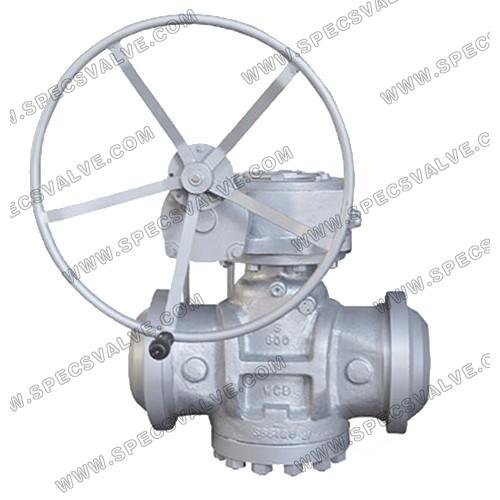

SPECS Lubricated Plug Valves Designed for Crude oil, Oil, Natural gas handling and transmission lines. Line sealing is achieved basically by metal to metal contact between body and plug with assistance of sealant injected in between body and plug, which serves both sealing and lubricating during operation.
Considered a high maintenance Plug Valve, they are often used in applications that have infrequent operations. Lubricated plug valves perform well in processes that utilize fluids which carry mildly abrasive particles such as dirty upstream applications, gas pipeline systems that need bypass valves, and as blow-down valves on valve stations and kicker valves.
Applicable Standard
Design Standard: API 599,6D, ASME B16.34
Face to Face: ASME B16.10
End Flange: ASME B16.5
Butt welding Ends: ASME B16.25
Inspection and Test: API 598, API 6D
Products Range
Size: 2" ~24" (DN50 ~ DN600)
Rating: 150lb ~ 1500LB
Body Material: Carbon Steel, Stainless Steel, Alloy Steel, Duplex Stainless Steel
Plug Material: Carbon Steel, Stainless Steel, Alloy Steel, Duplex Stainless Steel
Seat Material: Metal
Operation : Lever, Gear, Electric, Pneumatic, Hydraulic
Design Features
Reduced port or Full port
Rugged,Heavy-Duty Body
Large port opening
Pressure Balance Lubricates
