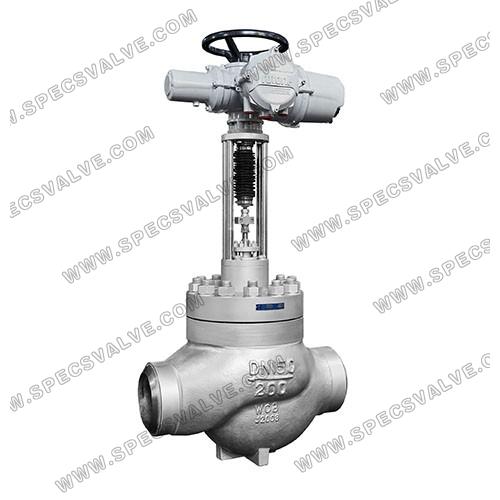

SPECS Cast High Pressure Control Valves are mainly applied for flow control in critical conditions including high temperature and high pressure or high pressure difference. It can prevent fluid cavitation and flashing, reduce noise and erosion of valve trim due to high flow velocity. And it has a wide application in high temperature, high pressure and hydrogen device.
Applicable Standard
Design & Manufacture Standard: IEC 60534-2006
Face to Face:ANSI/ ISA-75.08.06-2002
End Connection: ASME B16.5, EN1092-1, GOST33259, ASME B16.25
Test Standard: IEC60534-4
Products Range
Size: 1 1/2"~12"
Pressure Rating: ASME CLASS 150~2500
Material: Carbon steel, Stainless steel, Alloy steel, Duplex stainless steel
End: Flanged (RF, RTJ), Butt Weld, Socket Weld.
Temperature Range: -196℃~550℃
Seat Leakage: ANSI Ⅳ(0.01%) or Ⅵ(bubble-tight)
Bonnet Type: Standard, Fin-Extension, Long-Extension

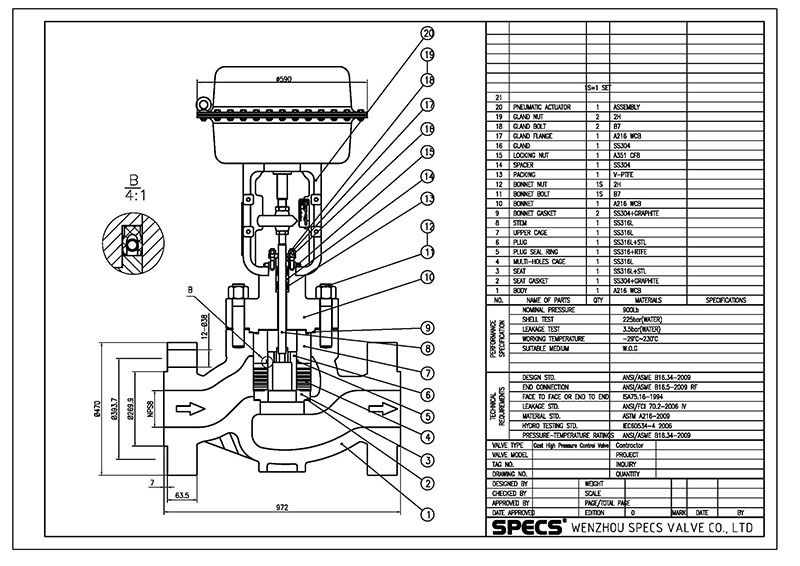

GA Of Cast High Pressure Control Valve
