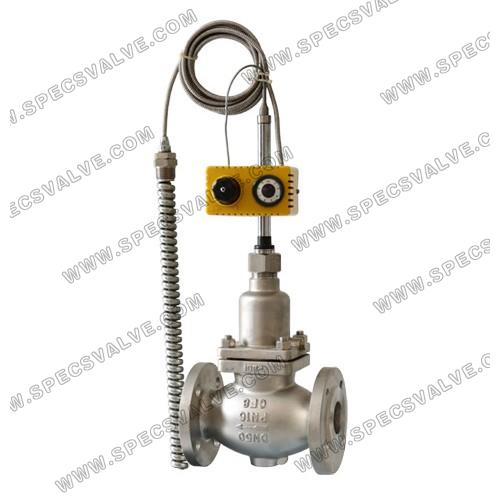

SPECS Temperature Valve is a kind of energy saving product which does not need external energy such as electricity or compressed air and only relies on the temperature change of the controlled medium itself to automatically adjust.The range of Temperature Valves includes a series of industrial products for both cooling and heating controls.
This product is mainly used in the automatic temperature control system of various heat exchangers with non-corrosive steam, hot water and oil as the medium.
It can be widely used in the automatic temperature control system of city heating and heating system as well as petrochemical, printing, pharmaceutical, boiler and other industries.The temperature regulators for heating installations consist of a Globe Valve and control thermostat with set point adjuster, a capillary tube and temperature sensor operating according to the adsorption principle. The valves close when the temperature rises.
Applicable Standard
Design & Manufacture Standard: Manufacturer's Standard
Face to Face: DIN 3202-1999 F1
End Connection: ASME B16.5, EN1092-1, GOST33259
Test Standard: Manufacturer's Standard
Products Range
Size: 1/2"~5"
Pressure Rating: ASME CLASS 150~300
Body material: Carbon steel, Stainless steel, Alloy steel, Duplex stainless steel
End: Flanged (RF,FM), Butt Weld, Thread
Seat Leakage: ANSI IV or ANSI VI(bubble-tight)
Bonnet Type: Standard, Long-Extension
Temperature Setting Range:5℃~150℃

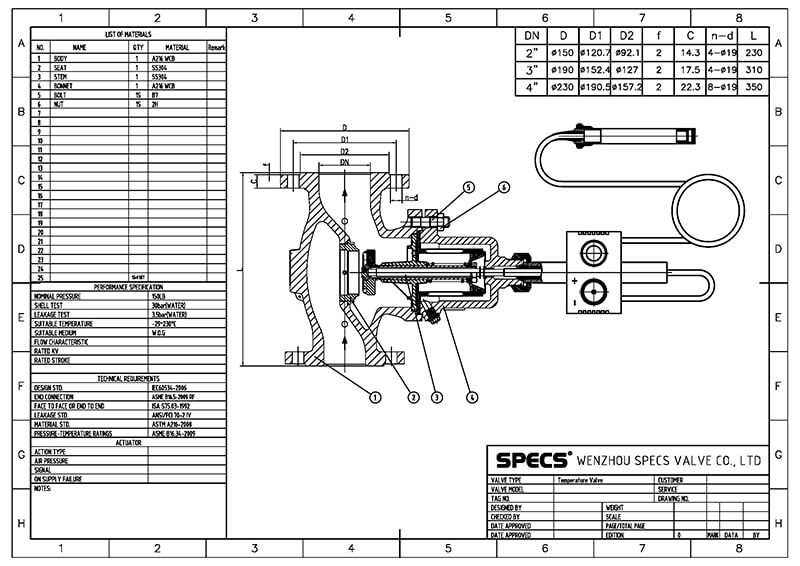

The GA Of Temperature Valve

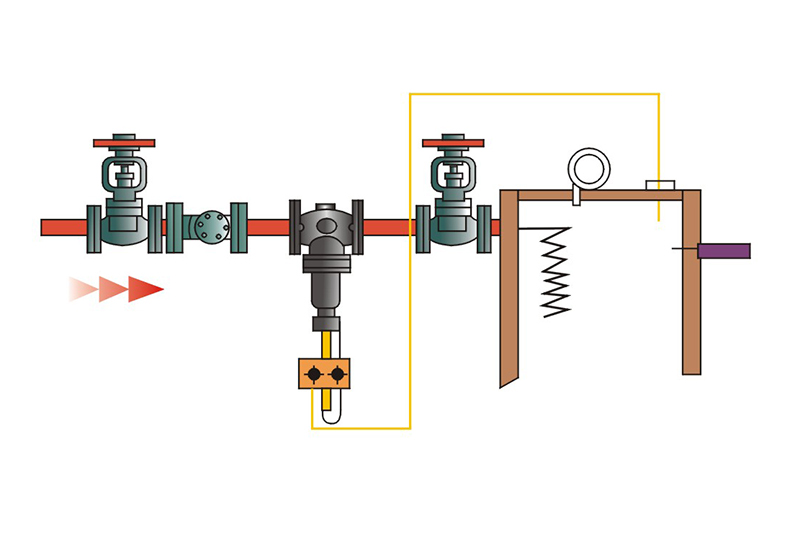

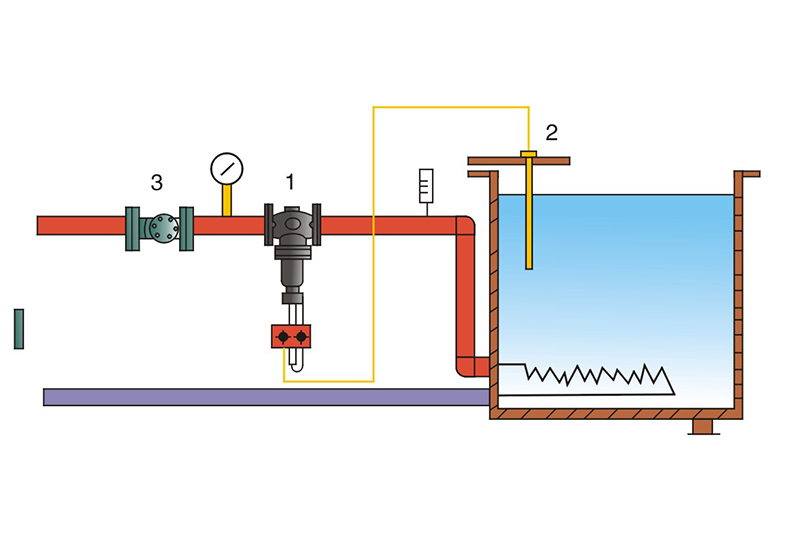

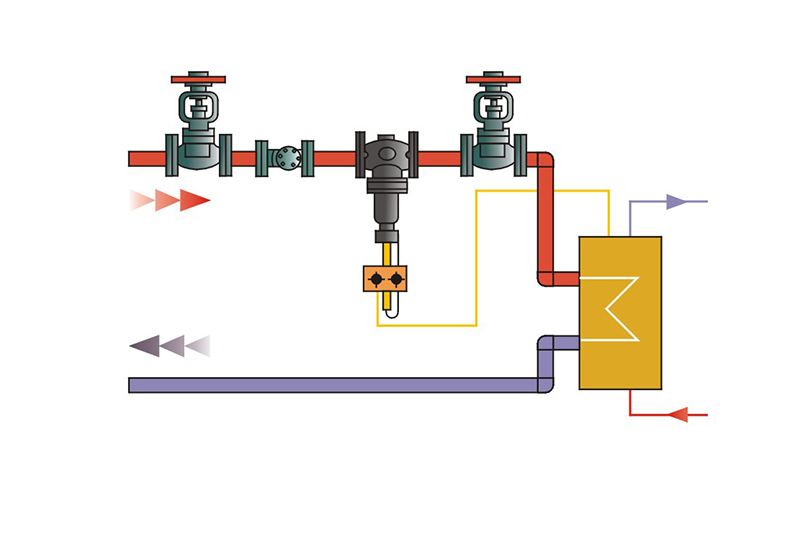

The application of temperature regulator
