Description
Technical Specifications

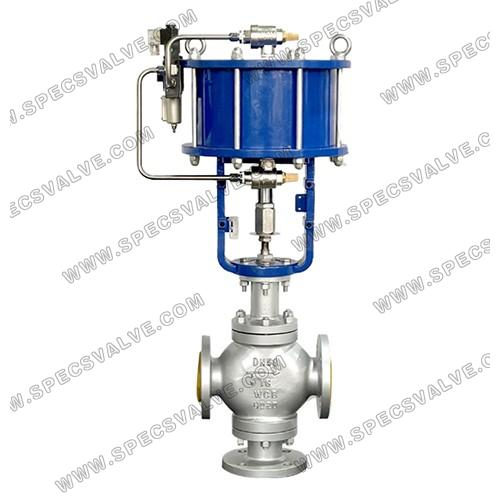

SPECS Pneumatic 3 Way On Off Valves adopts top guide structure, with pneumatic piston or Pneumatic Diaphragm Actuator.
It has the advantages of compact structure, light weight, sensitive action, s-streamline fluid channel, small pressure drop loss, large valve capacity, convenient disassembly and assembly, etc.
The cut-off valve accepts the signal from the regulating instrument to cut off, open or change the flow direction of the medium to achieve automatic control of pressure, flow, temperature or liquid level and other process parameters.
Widely used in petroleum, chemical, metallurgy, electric power, light industry, textile and other industrial sectors of production process automatic control and remote control system.
Design Features:
1. Valve body according to the principle of fluid mechanics design constant section low flow resistance channel, rated flow coefficient increases by 30%.
2. The sealing part of valve inner parts has two kinds: hard type and soft seal. The hard type is hardfacing hard alloy, and the soft seal type is made of soft material. It has excellent sealing performance when closed.
3. The bellows seal type forms a complete seal on the moving stem, preventing the possibility of media leakage.
Applicable Standard:
Design & Manufacture Standard: IEC 60534-2006
Face to Face: Manufacturer's Standard
End Connection: ASME B16.5, EN1092-1, GOST33259, ASME B16.25
Test Standard: IEC60534-4
Products Range:
Size: 1 1/2"~24"(DN40~DN600)
Pressure Rating: ASME CLASS 150~600(PN16~100)
Material: Carbon steel, Stainless steel, Alloy steel, Duplex stainless
steel
End: Flanged (RF, RTJ), Butt Weld, Socket Weld, Thread.
Temperature Range: -196℃~550℃
Seat Leakage: ANSI Ⅵ(bubble-tight)
Bonnet Type: Standard, Extension ,Long-Extension,Bellows,Steam Jacket
